Introducción
Producing a professional-grade Camión de plataforma plegable is more than just combining wheels and a wooden deck. Each detail—from material selection to ergonomic design—affects the trolley’s safety, durability, and user experience. El TC1860 model, widely recognized in industrial and commercial settings, demonstrates how meticulous design and production processes result in a high-performing folding platform trolley.
Thomas Lee, a warehouse logistics consultant, emphasizes:
“The right platform trolley improves workflow efficiency and reduces workplace injuries. Production quality, load capacity, and ergonomics are critical for reliable performance.”
This guide will provide a complete roadmap for manufacturers, suppliers, and buyers to understand production, testing, and optimization of folding platform trucks.
Understanding the Folding Platform Truck
Heavy-Duty Wooden Platform
The heart of a Camión de plataforma plegable is the wooden base. High-quality plywood or MDF provides an optimal balance of strength and weight. Reinforced edges and metal brackets ensure safe handling of loads from 150 kg to 1 tonne, depending on the model specification.
Key Specifications of TC1860 Platform:
- Dimensions: 1550mm × 765mm
- Thickness: 18–25 mm plywood or MDF
- Edge Reinforcement: Steel L-brackets for added durability
- Finish: Anti-slip coating for safety
Steel Frame Reinforcement
Even though the platform is wooden, durability and load support come from the steel frame.
- Material: Powder-coated or galvanized steel for corrosion resistance
- Diseño: Reinforced ribbing for rigidity under heavy loads
- Crossbars: Ensure uniform load distribution
- Welding/Bolting: Combined methods used depending on factory capability
Foldable Handle Design
A defining feature of folding platform trucks is the collapsible handle, which allows space-saving storage y easy transport.
- Hinge Mechanism: Allows 90° rotation and folding
- Locking Pins: Ensure stability in upright position
- Tool-Free Assembly: Quick installation for end-users
Step-by-Step Production Process
1. Material Selection
Wood: Choose high-strength plywood or MDF based on load requirements. Suppliers should provide certified grade sheets for consistent quality.
Steel Frame: Powder-coated or galvanized steel tubing ensures long-term resistance to corrosion and scratches.
Tyres:
- Pneumatic: Suitable for uneven terrain or outdoor use
- Solid: Optimal for factory or warehouse use
Suppliers Analysis:
| Material | Recommended Suppliers | Notas |
|---|---|---|
| Plywood/MDF | GreenBoard Co., PlyPro | Cert. strength 25–30 MPa |
| Marco de acero | SteelMax, MetalWorks | Powder-coated, thickness 1.5–2 mm |
| Pneumatic Tyres | TyreKing, AirRoll | 8–10 inch diameter |
| Solid Tyres | SolidGrip, IndustriWheel | Anti-slip, low-maintenance |

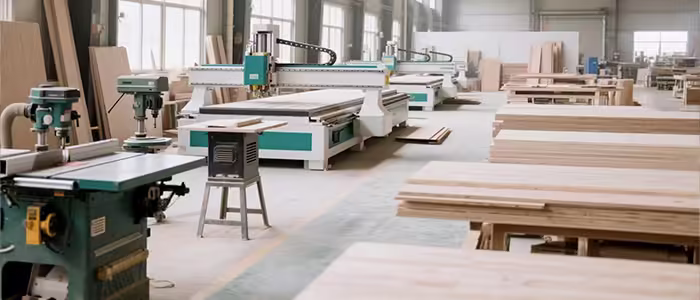

2. Cutting and Shaping
- Wooden platforms are precision cut to 1550mm × 765mm for the TC1860 model.
- Edges are sanded and reinforced with steel brackets.
- CNC routers can enhance precision for custom sizes.
Production Tip: Ensure consistent tolerance ≤ ±1 mm for uniform assembly.
3. Frame Assembly
- Weld or bolt steel frame sections together
- Install crossbars for load distribution
- Attach corner braces to reinforce structural integrity
- Check for alignment to prevent wobbling
4. Tyre Installation
- Pneumatic tyres provide smooth movement on rough surfaces.
- Solid tyres offer stability on flat floors and require minimal maintenance.
- Axle assembly includes bushings to prevent metal-on-metal friction.
5. Handle and Folding Mechanism
- Mount handles using hinge points
- Install locking pins to secure upright/folded positions
- Test folding cycles to ensure mechanism longevity (>1000 cycles)
6. Quality Control
Load Testing: Platforms tested up to 1 tonne.
Wheel Testing: Checked for smooth rotation and no wobbling.
Folding Mechanism: Repeated cycles to detect wear.
Finish Inspection: Anti-slip coating and paint uniformity checked.
Performance Testing Data
| Test Type | TC1860 Result | Industry Standard |
|---|---|---|
| Maximum Load | 1 tonne | 1 tonne |
| Folding Cycles | 1500+ | 1000 |
| Wheel Rotation Smoothness | <0.5 Nm torque | <1 Nm |
| Platform Deflection | <2 mm | <3 mm |
Observation: TC1860 exceeds standard performance benchmarks in load handling and durability.
Key Features of the TC1860 Folding Platform Truck
| Característica | Camión de plataforma plegable TC1860 | Standard Platform Truck | Budget Option |
|---|---|---|---|
| Capacidad de carga | 150kg – 1 tonne | 150 kilos | 100-200kg |
| Material de la plataforma | Plywood / MDF | MDF | Particleboard |
| Tyre Options | Pneumatic / Solid | Solid | Small Plastic Wheels |
| Mango plegable | Yes | No | No |
| Marco de acero | Heavy-duty, reinforced | Standard | Light |
| Diseño ergonómico | Yes | Limited | No |
TC1860 stands out for industrial and professional use, balancing load capacity, safety, and mobility.
Practical Applications
Warehouses and Factories
- Efficient stock and equipment movement
- Reduces workflow interruptions
- Improves safety during heavy lifting
Retail Shops
- Ideal for restocking shelves
- Foldable for compact storage
Home and DIY Use
- Moving furniture and appliances
- Pneumatic wheels prevent floor damage
Outdoor and Job Sites
- Handles uneven terrain
- Lockable wheels enhance stability
Customization and Optional Features
Platform Size Variations: Compact decks for workshops, large decks for factories.
Tyre Configuration: Pneumatic for outdoors, solid for indoor floors.
Surface Coatings: Anti-slip coatings, powder coating for corrosion resistance.
Modular Accessories: Hooks, bins, side rails to organize tools.
Optional Enhancements:
- Rubber bumpers
- Foldable side panels
- Color-coded handles for safety
Production Challenges and Solutions
1. Balancing Weight and Durability
- Steel frames add strength but increase weight
- Optimization of steel thickness reduces mass without compromising safety
2. Ensuring Stability
- Wide wheelbase prevents tipping
- Lockable wheels maintain stationary stability
3. Ergonomics for Operators
- Proper handle height reduces strain
- Multi-tiered storage allows easy access to tools
Consejos de mantenimiento
- Clean wooden platforms regularly to prevent dust buildup
- Lubricate wheels periodically for smooth movement
- Inspect folding mechanisms for wear
- Avoid exceeding maximum load capacity
Industry Insights
Jane Robertson, Industrial Equipment Engineer:
“Folding platform trucks like the TC1860 are essential for efficiency. Proper production ensures consistent load handling, safety, and lifespan.”
Industrial Logistics Association Study:
- Workflows improved 28% with professional-grade folding trolleys
- Workplace injuries from lifting dropped 32% after introducing ergonomic trolleys
Comparative Analysis with Other Brands
| Brand | Capacidad de carga | Material de la plataforma | Tyres | Mango plegable | Marco de acero |
|---|---|---|---|---|---|
| TC1860 | 1 tonne | Plywood/MDF | Pneumatic/Solid | Yes | Trabajo pesado |
| Brand X | 500kg | MDF | Solid | No | Standard |
| Brand Y | 200kg | Particleboard | Plastic | No | Light |
Observation: TC1860 outperforms competitors in load handling, mobility, and foldable design.
User Case Studies
Warehouse Implementation
- Company A reduced stock transport time by 25% using TC1860.
- Injury reports dropped due to ergonomic handle design.
Retail Shop Usage
- Shop B used compact folding trolleys for restocking in tight aisles.
- Storage space optimized with foldable handle feature.
Home DIY
- Homeowner moved furniture without floor damage, thanks to pneumatic tyres.
Optimization Suggestions
- Material Upgrades: Use marine-grade plywood for higher moisture resistance.
- Opciones de neumáticos: Introduce shock-absorbing wheels for outdoor terrain.
- Ergonomic Enhancements: Adjustable handle height for multi-user operations.
- Digital Integration: Optional QR codes for inventory tracking on trolleys.
Conclusión
Manufacturing a Camión de plataforma plegable like the TC1860 requires careful material selection, precision assembly, and ergonomic considerations. From warehouses to homes, these trolleys enhance productivity, safety, and efficiency. By combining strong wooden platforms, reinforced steel frames, versatile tyres, and foldable handles, producers can deliver a professional-grade, reliable trolley suitable for a wide range of industrial, commercial, and home applications.
Key Takeaway: A well-designed folding platform truck is more than a tool—it’s a workflow optimizer y un safety enhancer.
Preguntas frecuentes
Q: Maximum load for TC1860?
A: 150kg to 1 tonne depending on model.
Q: Can it be used on rough surfaces?
A: Yes, pneumatic tyres are ideal; solid tyres for indoor floors.
Q: Is assembly required?
A: Yes, but folding handle is tool-free and easy to install.
Q: Can the platform be customized?
A: Yes, size, tyres, and accessories can be adjusted.
Q: How durable is the wooden platform?
A: High-quality plywood/MDF with steel reinforcement ensures longevity.
Q: What are the dimensions of the TC1860 platform?
A: The standard platform measures 1550mm × 765mm, but custom sizes are available for specific requirements.
Q: What type of handle does it have?
A: The TC1860 features a mango plegable with a tool-free locking mechanism, designed for ergonomic use and easy storage.
Q: What are the tyre options available?
A: Pneumatic tyres are suitable for rough outdoor surfaces, while solid tyres are ideal for smooth indoor floors. Optional shock-absorbing wheels can also be selected for heavy-duty tasks.
Q: How long does a TC1860 trolley typically last?
A: With proper maintenance, high-quality plywood/MDF platforms and reinforced steel frames ensure a lifespan of 5–10 years in industrial or commercial use.
Q: Can it carry uneven or bulky loads safely?
A: Yes, the reinforced steel frame and wide wheelbase provide stability for bulky, uneven loads up to 1 tonne, reducing tipping risk.
Q: How much does a TC1860 trolley weigh?
A: The weight ranges from 25kg to 40kg, depending on the platform material, steel frame thickness, and tyre type.
Q: Is it suitable for outdoor or construction site use?
A: Absolutely. Pneumatic tyres and heavy-duty steel frames make it ideal for rough terrain, outdoor warehouses, and construction sites.
Q: Can additional accessories be added?
A: Yes. Optional accessories include hooks, bins, side rails, rubber bumpers, and even color-coded handles for safety and organization.
Q: How should I maintain the folding mechanism?
A: Regularly inspect the hinge pins, lubricate with light oil, and check for wear. Proper maintenance ensures smooth folding cycles for years.
Q: Is the TC1860 environmentally friendly?
A: The trolley uses certified plywood or MDF, powder-coated steel, and recyclable components wherever possible, ensuring a sustainable manufacturing process.
Q: Can the trolleys be branded for companies?
A: Yes, custom logos, colors, or labels can be added to meet corporate or warehouse identification needs.
Q: Are replacement parts available?
A: Spare wheels, handles, locking pins, and brackets can be ordered directly from the manufacturer, making maintenance simple.
Q: Can it be stacked or stored vertically?
A: The foldable handle allows compact storage, and multiple trolleys can be nested or stacked carefully to save space in warehouses or workshops.
